stac-rs

High-performance, reliable STAC tooling with Rust

by Pete Gadomski

@gadomski

No Rust code in these slides

🤯

A bit about STAC

• Spatio-Temporal Asset Catalog
• Open community specification, based on GeoJSON
• Core v1.0.0 released May 2021
• API v1.0.0 released April 2023

STAC is a map to the data.
— Hobu

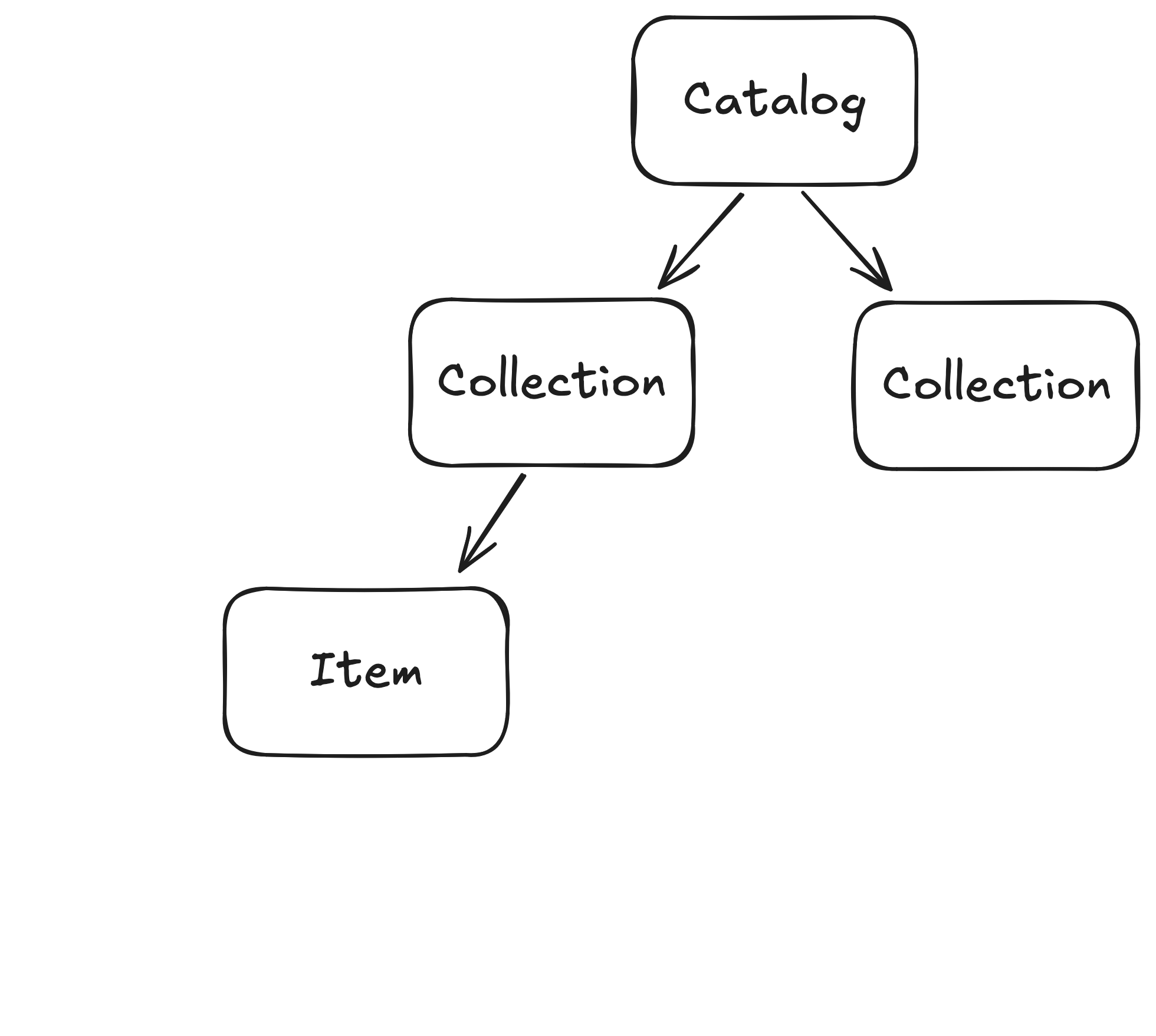

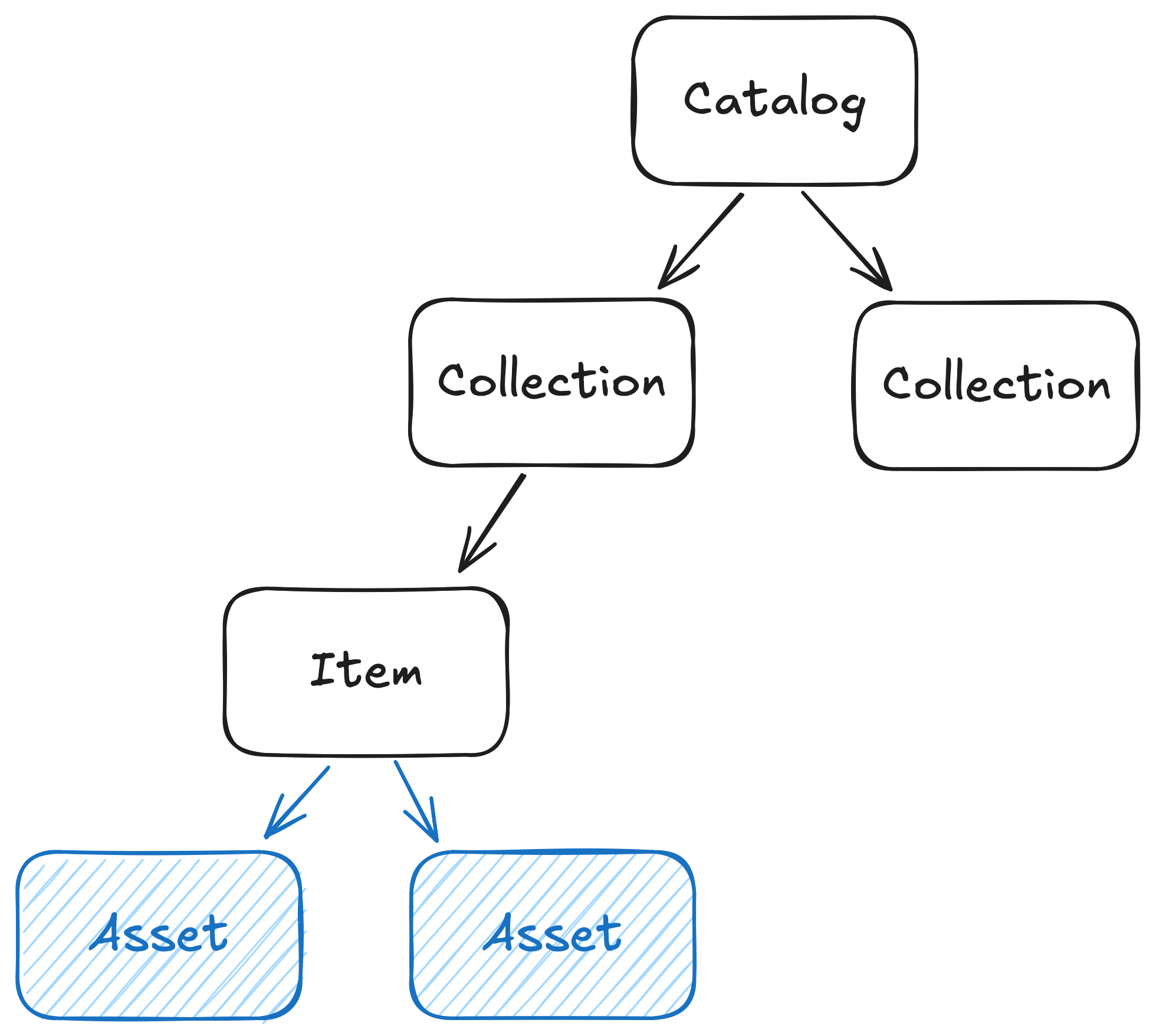

STAC entities

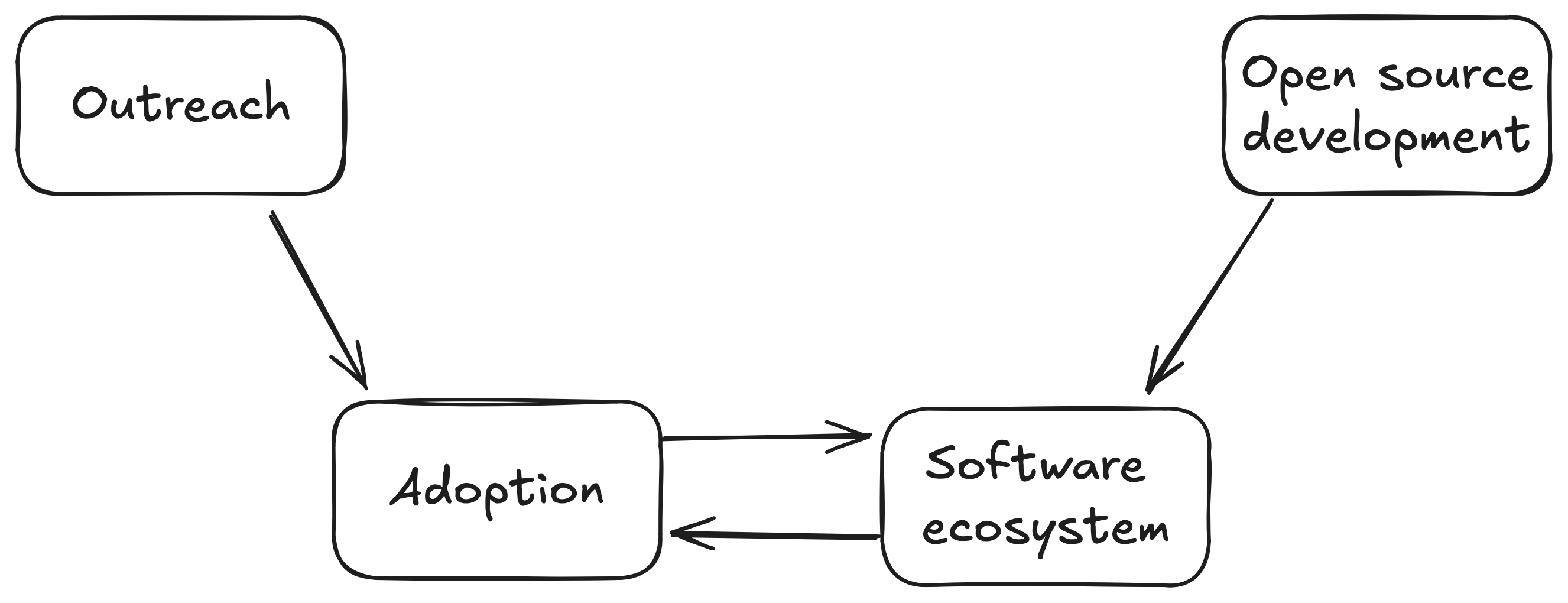

Development

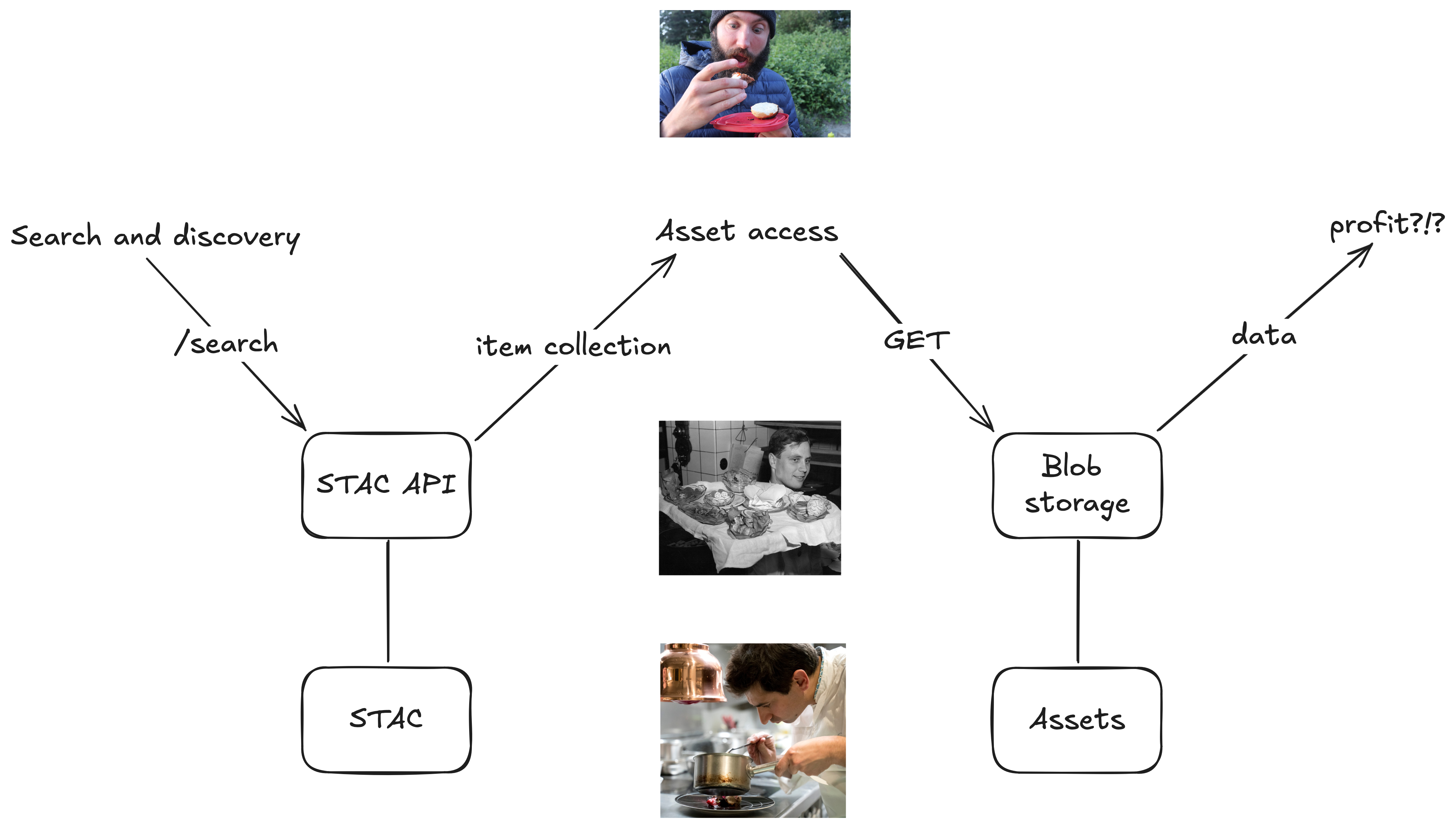

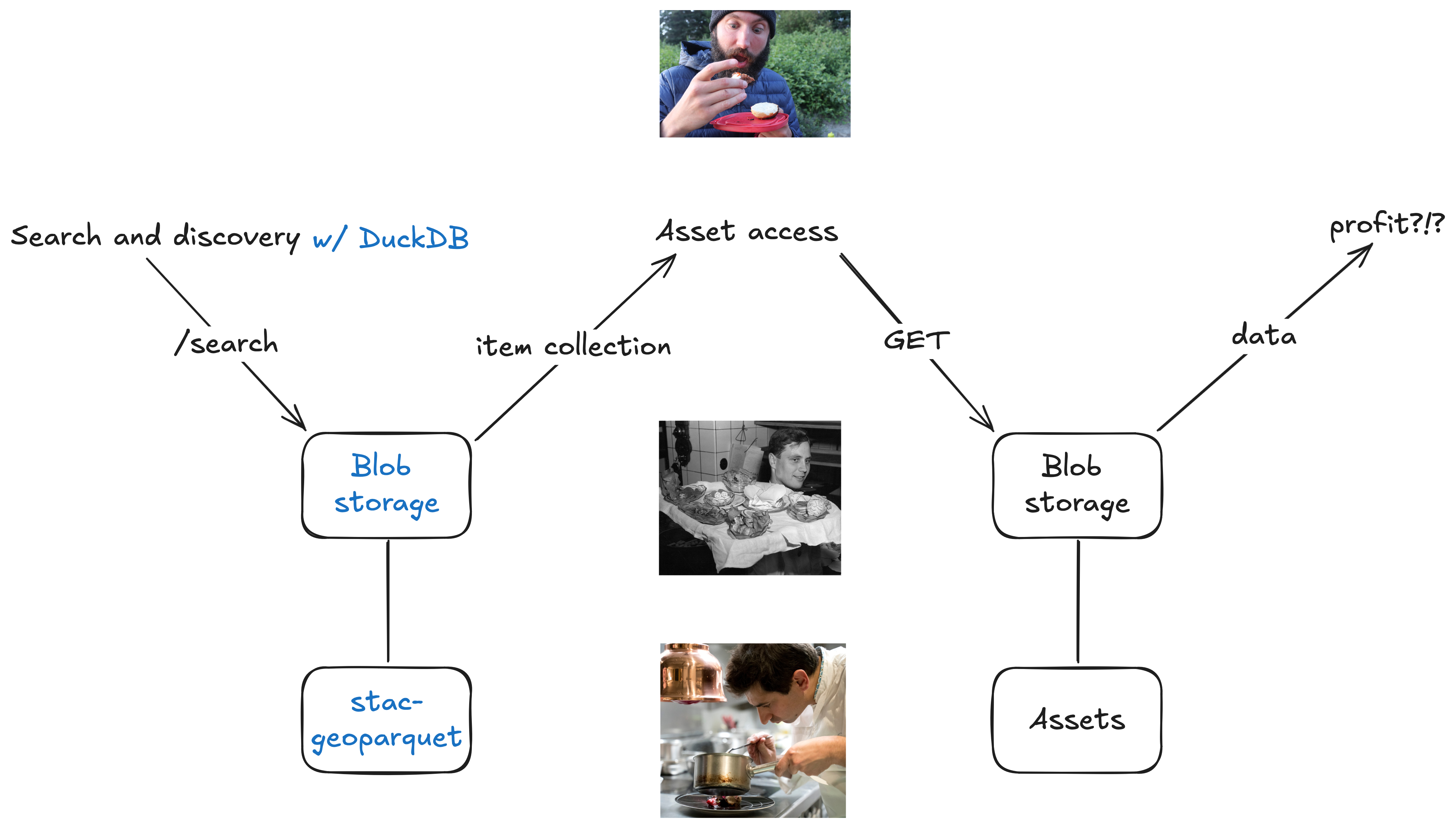

STAC usage

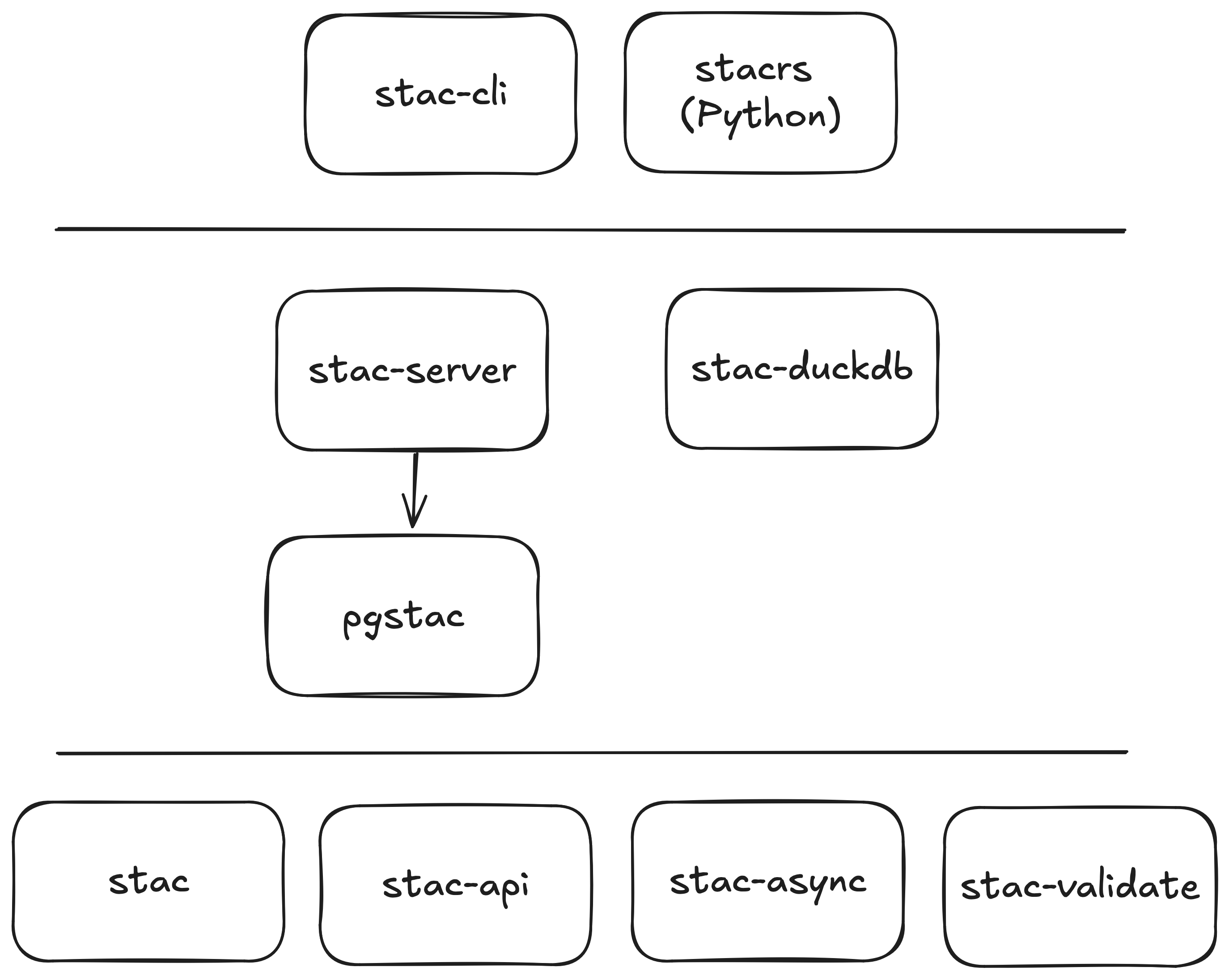

Why stac-rs?

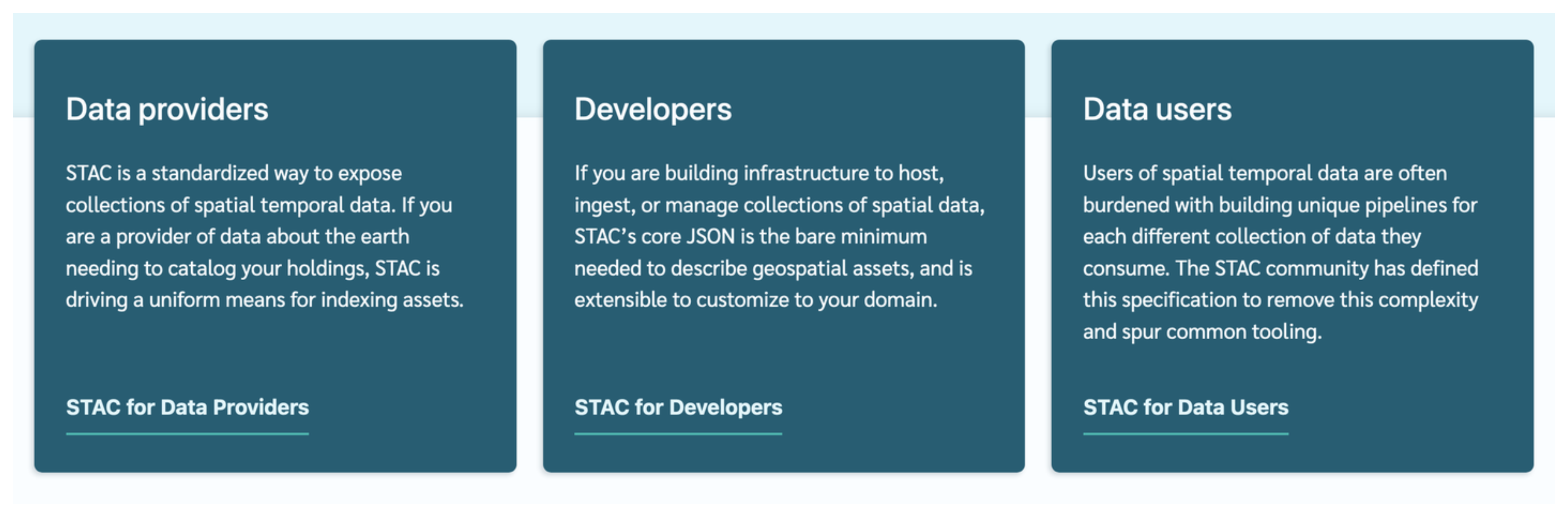

• Software ecosystem diversity

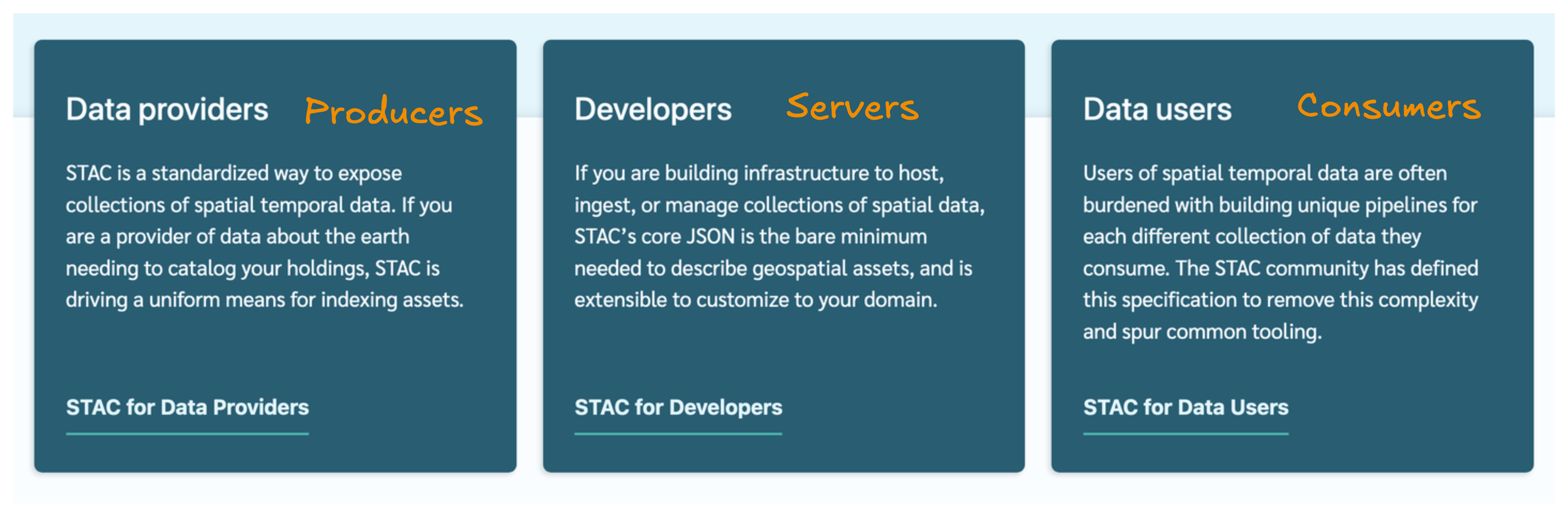

• Fill tooling gaps for
  • Servers (developers)
  • Consumers (data users)
• Language binding support (e.g. Python, WASM)

Caveat

⚠️ Not used in production AFAIK

Installing

						$ cargo install stac-cli


						$ pip install stacrs-cli  # missing some features, e.g. GDAL


$ stacrs --help


Command line interface for stac-rs

Usage: stacrs [OPTIONS]

Commands:
  item       Creates a STAC Item
  migrate    Migrates a STAC value from one version to another
  search     Searches a STAC API
  serve      Serves a STAC API
  sort       Sorts the fields of STAC object
  translate  Translates STAC values between formats
  validate   Validates a STAC object or API endpoint using json-schema validation
  help       Print this message or the help of the given subcommand(s)

Options:
  -c, --compact                        Use a compact representation of the output, if possible
  -i, --input-format     The input format
  -o, --output-format   The output format
  -h, --help                           Print help
  -V, --version                        Print version


For producers

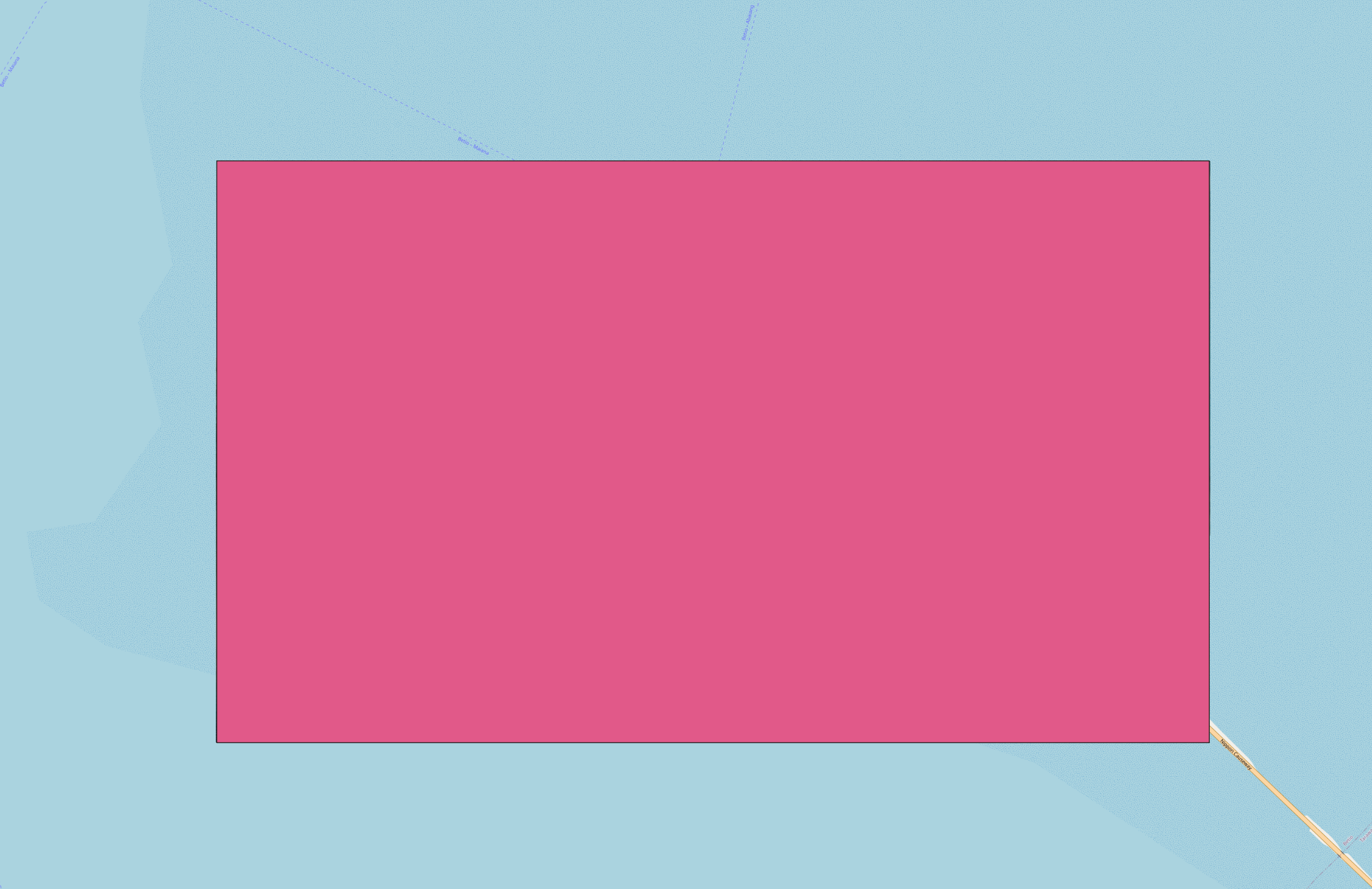

Create

$ stacrs item an-id
{
	"type": "Feature",
	"stac_version": "1.0.0",
	"id": "an-id",
	"geometry": null,
	"properties": {
		"datetime": "2024-08-27T20:37:29.293151Z"
	},
	"links": [],
	"assets": {}
}


UNIX-y

$ stacrs item an-id > item.json && cat item.json
{
	"type": "Feature",
	"stac_version": "1.0.0",
	"id": "an-id",
	"geometry": null,
	"properties": {
		"datetime": "2024-08-27T20:37:29.293151Z"
	},
	"links": [],
	"assets": {}
}


$ stacrs item an-id item.json && cat item.json
{"type":"Feature","stac_version":"1.0.0","id":"an-id","geometry":null,"properties":{"datetime":"2024-09-06T16:48:10.156061Z"},"links":[],"assets":{}}


$ stacrs item an-id | stacrs validate && echo "OK"
OK

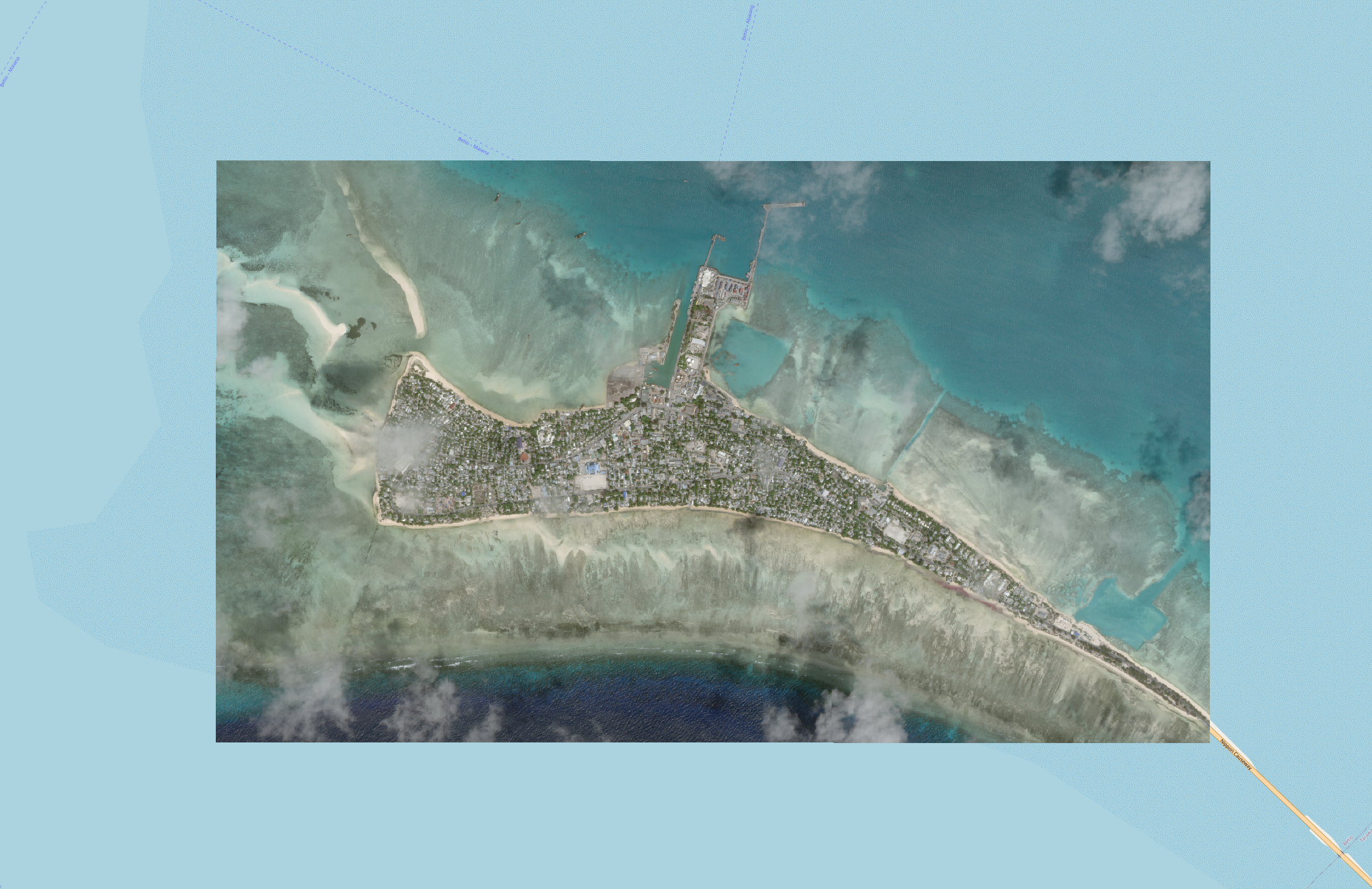

Create (raster)

$ stacrs item \
  https://storage.googleapis.com/open-cogs/stac-examples/20201211_223832_CS2.tif


Create many

$ stacrs items images/*.tif > item-collection.json


Use other tools

• https://github.com/developmentseed/rio-stac
• https://github.com/stactools-packages/

Migrate

						$ stacrs migrate bands-v1.0.0.json --version 1.1.0-beta.1 | \
							 jq '.stac_version'
						"1.1.0-beta.1"


Translate

$ stacrs translate \
	1000-sentinel-items.json \
	1000-sentinel-items.parquet


$ stacrs translate --geoparquet-compression snappy \
	1000-sentinel-items.json \
	1000-sentinel-items-snappy.parquet


							$ du -h 1000-sentinel-2-items* | sort -h
							7.0M    1000-sentinel-2-items.parquet
							 23M    1000-sentinel-2-items.json


							$ du -h 1000-sentinel-2-items* | sort -h
							1.1M    1000-sentinel-2-items-snappy.parquet
							7.0M    1000-sentinel-2-items.parquet
							 23M    1000-sentinel-2-items.json


Geoparquet

• Stores geospatial vector data in Parquet
• v1.1.0 release May 2024
• geoarrow is a related specification

🤔 STAC items are geospatial vectors

stac-geoparquet

• Two known implementations:
  • stac-geoparquet (includes spec)
  • stac-rs
• 😢 STAC isn't perfect for GeoParquet
• For more, see the Cloud-Native Geospatial blog post

"Benchmarks"

For servers

<rant/>

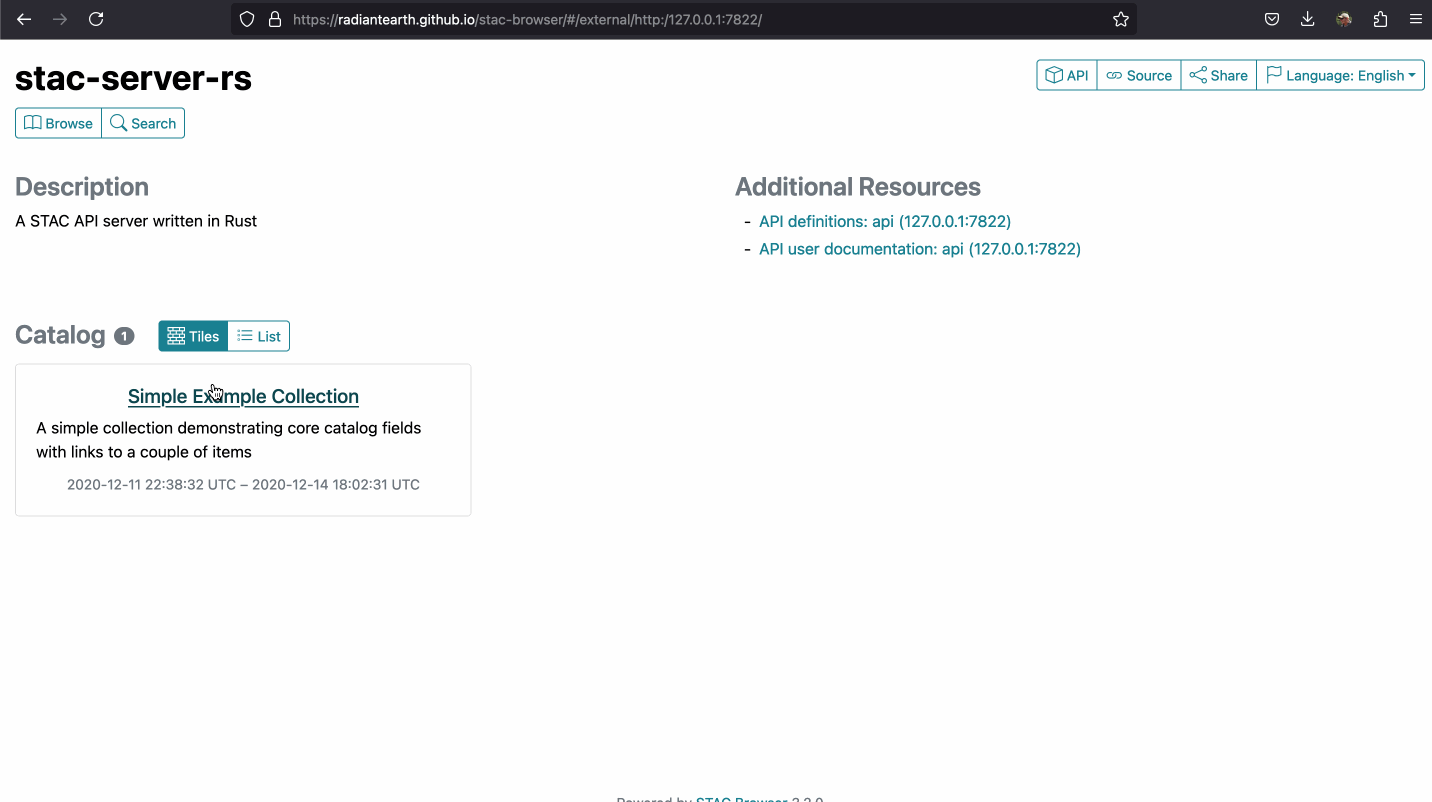

Serve

$ stacrs serve spec-examples/v1.0.0/collection.json
Serving a STAC API at http://127.0.0.1:7822 using a memory backend (loaded 1 collection and 3 items)

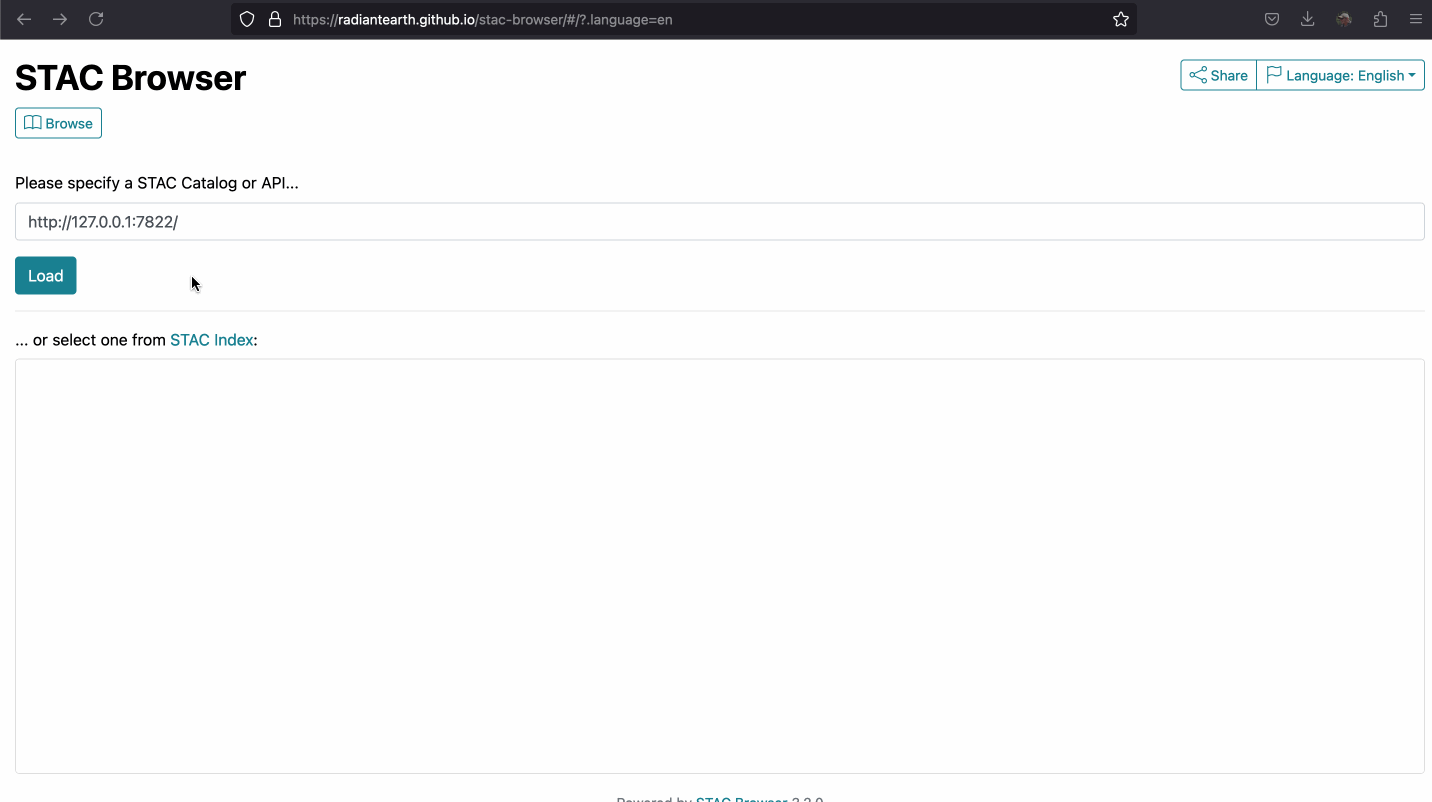

Serve items

	$ stacrs serve 1000-sentinel-items.json
	Serving a STAC API at http://127.0.0.1:7822 using a memory backend (loaded 1 collection and 1000 items)


Serve pgstac

$ stacrs serve --pgstac postgresql://username:password@localhost:5432/postgis
Serving a STAC API at http://127.0.0.1:7822 using a pgstac backend


"Benchmarks"

Consumers

Search

  stac-geoparquet

$ stacrs search https://planetarycomputer.microsoft.com/api/stac/v1 \
	-c sentinel-2-l2a --intersects @colorado.json \
	--max-items 1000 --sortby="-properties.datetime" \
	1000-sentinel-2-items.json


$ stacrs search https://planetarycomputer.microsoft.com/api/stac/v1 \
	-c sentinel-2-l2a --intersects @colorado.json \
	--max-items 1000 --sortby="-properties.datetime" \
	1000-sentinel-2-items.parquet


Search with DuckDB

⚠️ Experimental

$ cargo install stac-cli -F duckdb


Then:

$ stacrs search 1000-sentinel-2-items.parquet \
	--intersects @longmont.json


$ stacrs search \
	http://localhost:8080/1000-sentinel-2-items.parquet \
	--intersects @longmont.json
